8 Fiber, Wall/Pole Mount, Termination Box
DESCRIPTION
Joining Fiber Optic Cable and Pigtails (215.9mm x 206.3mm x 53.9mm)
Fiber Optic Termination Boxes are great for jointing fiber optic cable and pigtails. By providing a safe and secure housing they protect fiber optic splices and enable easy distribution. They are primarily used within the telecommunications industry and network equipment rooms.
Product Features
Made of high-impact plastic
UV Resistant and Weather Proof
Can hold up to 8 drop cables and 8 SC
connectors
Great for pole or wall mounting
Protection class - IP 67
RoHS compliant
Product
Specifications
Length: | 215.9mm |
Width: | 206.3mm |
Height: | 53.9mm |
Max Capacity of Fiber Splice: | 8 fibers |

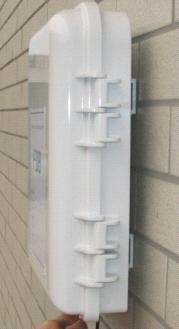

As seen below, the Termination Box is Pole and Wall Mountable, perfect for corridors, basements, poles, external walls and more. Made with a high-quality plastic and fitted with a rubber gasket, this termination box is UV-resistant and rainfall resistant.

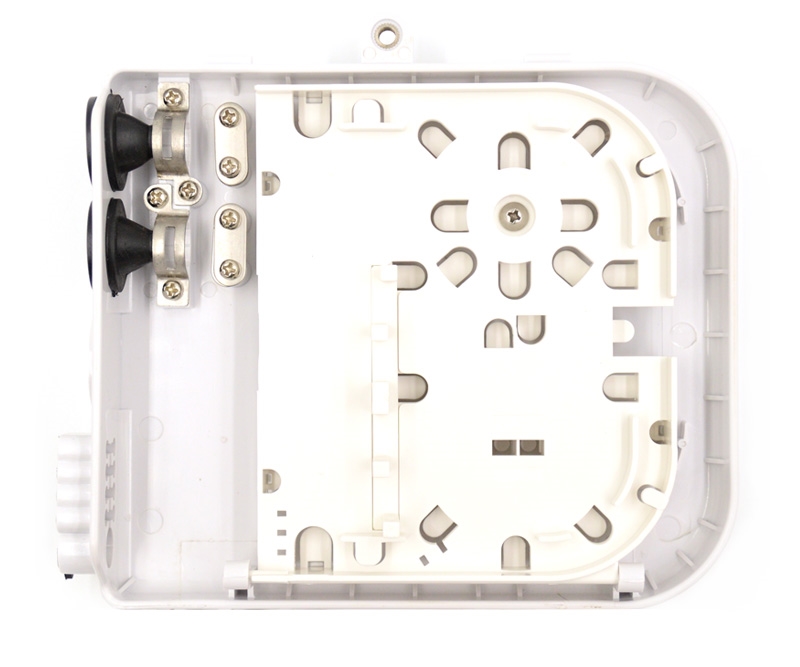

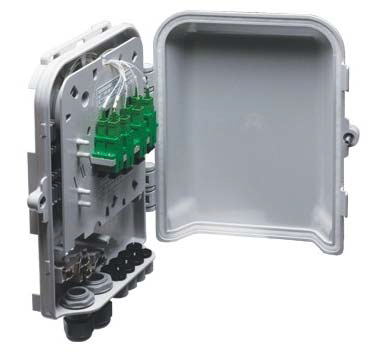

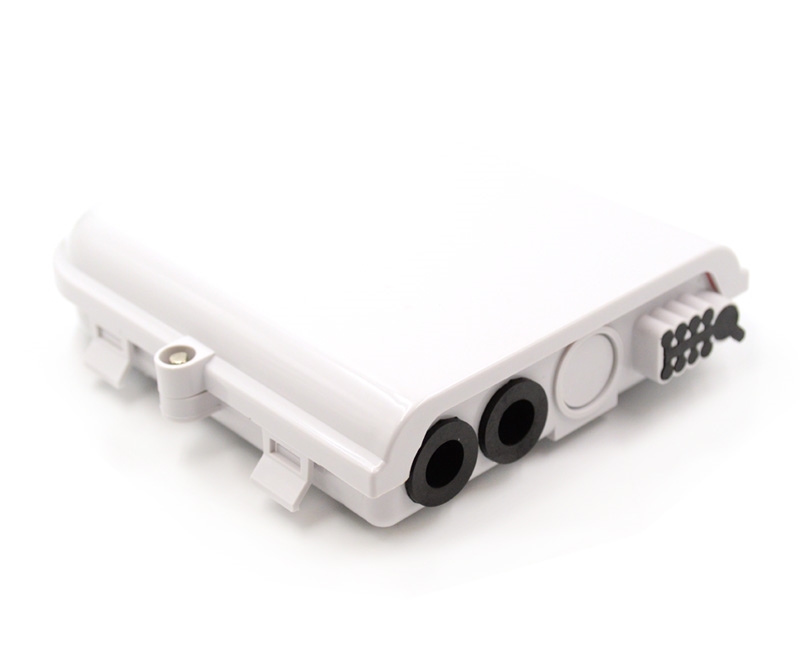

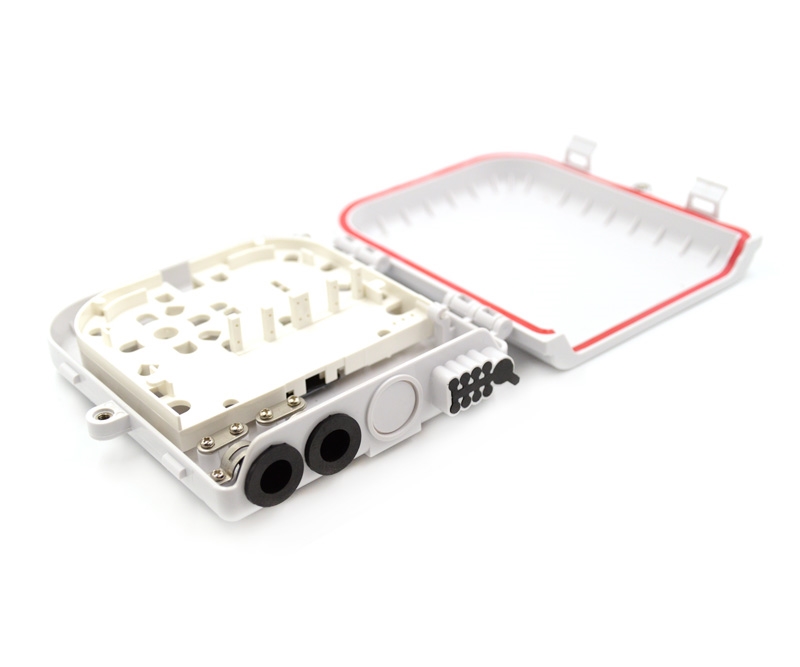

Seen below on the left is where the small diameter cable enters the box and is fixed or fastened. On the right, we see the back side of the tray with splitters and coils. Below are some pictures of both sides of a fully equipped tray. On the right you'll see the drop cable leaving one of the output holes.
These Termination Boxes are highly customizable; they can be outfitted with almost any connector and can be used in a wide range of applications, including FTTH projects, Telecommunication networks, CATV networks,and Data and Local Area Networks.
