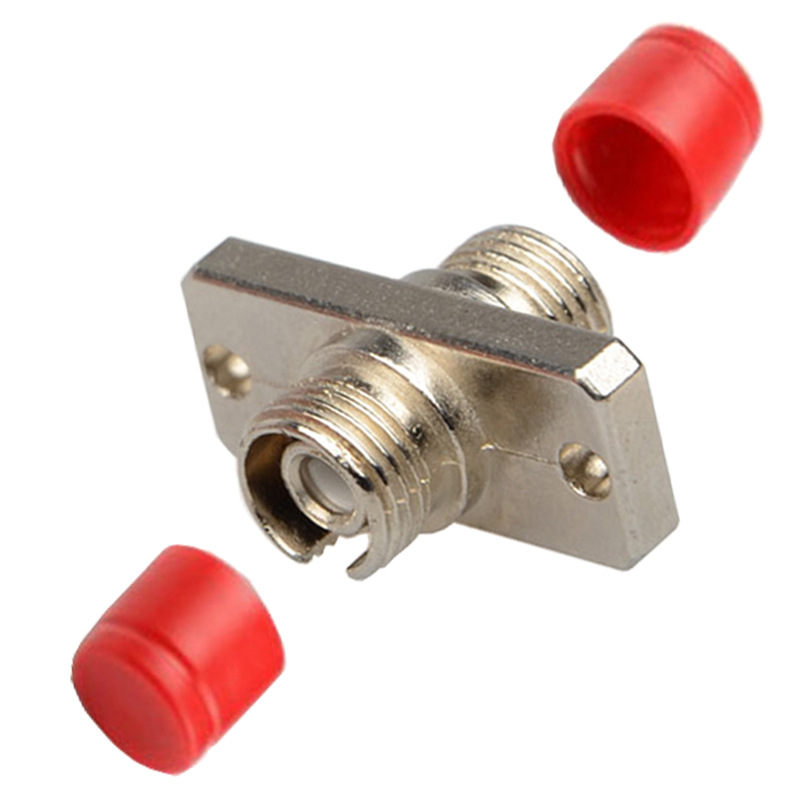

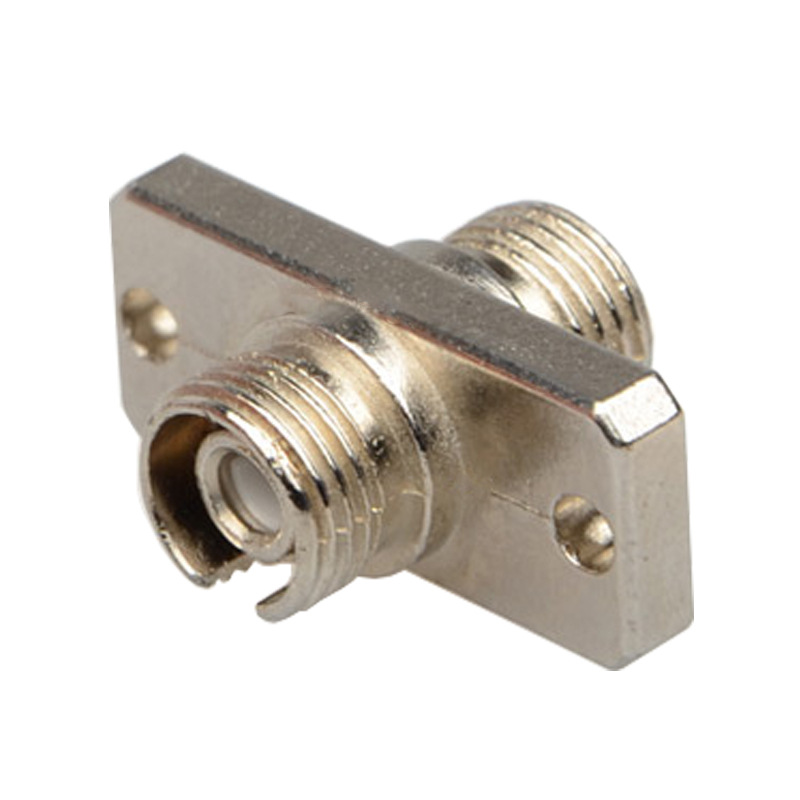

| Model # | ADFC1-M | Keyword | Fiber Optic Adapter FC Retangle | | Type | Simplex Rectangle | MOQ | 50pcs |
Typical specification | Insert loss | 0.2dB | Return loss | ≥55dB (SM) | ≥65dB(APC) | ≥35dB(MM) | Mating Durability | Max.0.2dB change, 500 mating cycles | Temperature | Max.0.3dB change,-40℃-85℃ | Receptacle retention force | 2-5.9N | Pull out force | 70N | Color | Blue(PC,SM), Green(APC), Beige(MM), Aqua(OM3/OM4) | Optionals | Housing material | Moulded thermoplastic(P) | Die cast metal(DM) | Stainless steel(SS) | Sleeve material | Zirconia Ceramic(ZC) | Phosphor-Bronze(PB) |
| Fiber type | SM(9/125) | MM(50/125,62.5/125) |
| Polishes | PC | APC | UPC | Mounting options | Stainless steel spring plate | M2x6 Screw | Both |
|
