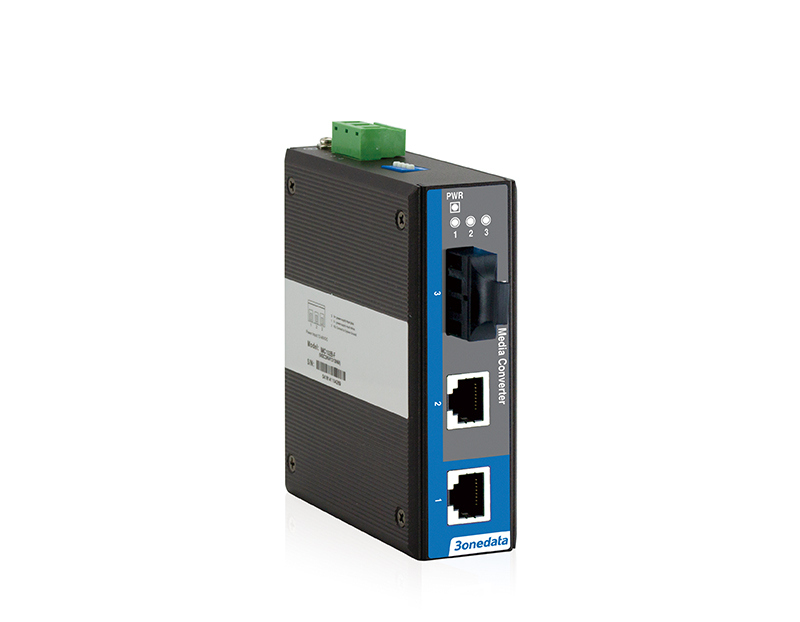

3-port 100M Unmanaged Industrial Media Converter
Features
Support 1 100M fiber port, 2 100M copper ports;
Support input voltage: 12~48VDC, nonpolarity, reverse polarity protection;
Support -40~75℃ wide operating temperature range.
Specifications
Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX |
Interface | Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX, SC/ST/FC optional |
LED Indicator | Port Indicator, Power Supply Indicator |
Switch Property | Transmission mode: store and forward MAC address: 2K Packet buffer size: 0.5Mbit Backplane bandwidth: 1.2G Switch time delay: < 10μs |
Power Requirement | 12~48VDC, 3-pin 7.62mm pitch terminal blocks Support nonpolarity, reverse polarity protection |
Power Consumption | No-load: 1.20W@24VDC Full-load: 1.54W@24VDC |
Environmental Limit | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%（no condensation） |
Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight: 346g |
Industrial Standard | IEC 61000-4-2 (ESD), Level 4 lAir discharge: ±16kV lContact discharge: ±8kV IEC 61000-4-5 (Surge), Level 4 lPower supply, common mode ±4kV, differential mode ±2kV lEthernet interface: ±4kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Certification | CE, FCC, RoHS |
Warranty | 5 years |
Descriptions
3-port 100M unmanaged industrial media converter. The product provides 100M copper port and 100M fiber port. It adopts DIN-Rail mounting to meet the requirements of different application scenes.
Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.
