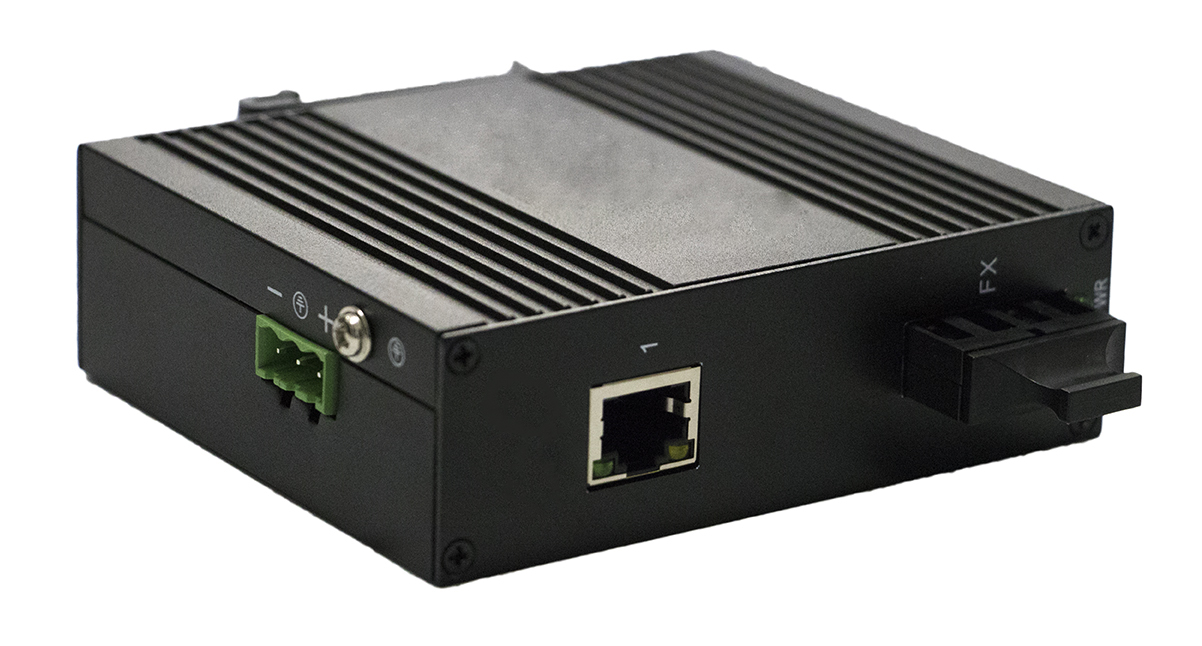

10/100/1000Mbps Adaptive Fiber Transceiver
Product Features
1. Original imported industrial-grade ASIC
2. No fan, low power consumption, high and low temperature resistance
3. Plug and play design, without on-site electrical and optical adjustment
4. Abundant status indicators can monitor the running status of the equipment
5. Comply with IEEE802.3 10base-t and IEEE802.3u100 Base-TX /FX and 1000base-tx /FX standards
6. Support full duplex and half duplex transmission mode, can automatically negotiate
7. Adaptive parallel line/cross line connection mode of electrical port
8. Suppress the broadcast storm
9. Full surface mount SMD technology
Industrial grade multiple lightning protection and electromagnetic interference protection design
11. POE complies with IEEE 802.3af/at standard and provides 15.4w power supply
12. 12 ~ 36V DC elastic power supply, easy to install and maintain
13.IP40 protection grade, DIN guide rail installation
Specifications
Interface | 1 x 10/100/1000 Base-TX, rj-45 1 x 1000 Base FX, SC/FC/ST/SFP |
Rate | 10/100/1000mbps (adaptive) |
Packet forwarding rate | 4.464Mpps |
Back panel bandwidth | 4Gbps |
POE | Standard IEEE 802.3 af/ats POE |
POE power supply | IEEE 802.3af 48V 15.4w |
POE stitching | V + : 1, V + : 2, V - : 3, V - : 6 |
Transmission | Store and forward |
Working mode | Full duplex/half duplex adaptive |
Connection mode | Parallel line/cross line adaptive |
Indicator lights | PWR, FX, G1 |
Transmission distance | Single mode 20-120km, Multi-mode 2KM |
Power input | European gauge wire terminal (12 ~ 36V DC elastic power supply) |
Power consumption | < 3 w |
Overload protection | Support |
Enclosure | Aluminum enclosure, no fan |
Protection grade | IP40, high strength metal shell |
Overall size | W108 xH90 x D34(mm) |
Weight | 300 g |
Installation | Standard 35mmDIN card rail type |
Operating temperature | -40°C-85°C |
Storage temperature | -40°C-95°C |
Relative humidity | 5-95% (no condensation) |
Average trouble-free working time | 400,000 HRS |
EMI | FCC Part 15, CISPR (EN55022) Class A |
EMS | EN 61000-4-2 (ESD), Level 3; EN 61000-4-3 (RS) of electromagnetic field, Level 3 EN 61000-4-4 (fast transient EFT),Level 3 EN 61000-4-5 (Surge Surge), Level 3 EN 61000-4-6 (induction CS), Level 3 En 61000-4-8 (power frequency magnetic field), Level 5 |
Impact | IEC60068-2-27 |
Free fall | IEC 60068-2-32 |
Industrial environment immunity | IEC 61000-6-2, IEC 61850-3 |
Vibration | IEC 60068-2-6 |
Safety | CE/EN60950 |
Order Information
Model | Configuration | Power Supply |
TS-IE1101G-SSA/B | 1 x 10/100/1000 Base-TX, 1 X 1000 Base FX, single mode, single fiber, SC, 25KM, 1310nm/1550nm | 12V DC |
TS-IE1101G-S | 1 x 10/100/1000 Base-TX, 1 X 1000 Base FX, single mode 2 fibers, SC, 25KM，T/Rx 1310nm | 12V DC |
TS-IE11O1G-SFP | 1 x 10/100/1000 Base-TX, 1 X 1000 Base FX(SFP), rail type | 12V DC |
Note: POE optional
Product Overview
TS-IE1101G series industrial optical fiber transceiver provides 1000Base-FX optical fiber interface and 10/100/1000mbps RJ45 port, supporting 10/100/1000mbps, full duplex/half duplex and MDI/MDIX polarity adaptive. The product adopts high performance industrial grade chip, and all ports support non-blocking, full-speed packet forwarding.TS - IE1101G series industrial grade optical fiber transceiver adopts high quality hardware design, fully following the industrial grade design specification.All ports of the equipment are equipped with lightning protection circuit, electromagnetic interference LV4 standard, the equipment can operate reliably even in harsh environment.
