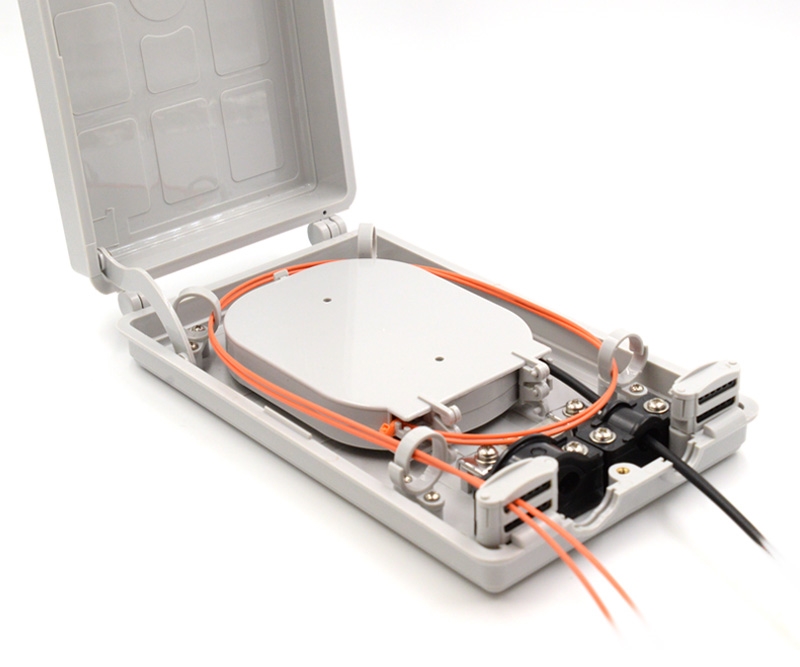

12 Fiber, Wall Mount Termination Box, 2 Ports, 2 Trays
DESCRIPTION
Joining Fiber Optic Cable and Pigtails (264mm x 154mm x 56mm)
Fiber Optic Termination Boxes are great for jointing fiber optic cable and pigtails. By providing a safe and secure housing they protect fiber optic splices and enable easy distribution. They are primarily used within the telecommunications industry and network equipment rooms.
Product Features
The structure of the Wall Mount Termination Box is innovative and designed in a up-down bisection. It is easy to install simply by untightening the fixing nut. This allows fiber optic cables and fiber pigtails to pass in and out in a single slide.
The housing is made of high strength polycarbonate plastic which provided mechanical strength and insure long-lasting reliability.
The Tray makes use of a Slide-In-Lock and has an opening angle of 90°. Making it easy to install and maintain.
Elastic material is used to secure fiber pigtails. When the end of the fiber pigtail can not be determined it is possible to wind the fiber into the clasp. If needed the active connector can be installed outside of the housing and therefor it can connect termination equipment without requiring connecting adapter.
The housing is made of high strength polycarbonate plastic which provides mechanical strength and insures long-lasting reliability.
Protection Class IP55
Easy installation
Simple maintenance
Product Specifications
Length: | 264mm |
Width: | 154mm |
Height: | 56mm |
Max Capacity of Fiber Splice: | 12 fibers per tray |
Port Capacity | 2 ports, each port for 1 cable with max 16mm 24 ports, each port for 1 cable with max 3mm |
